Kennametal

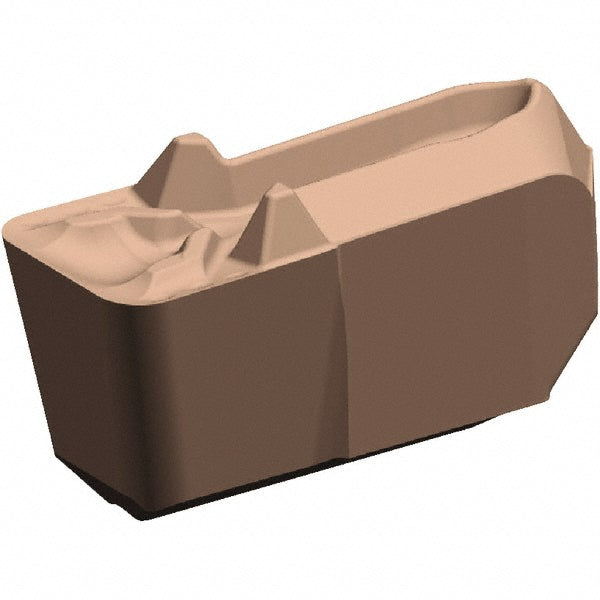

Carbide Insert, Grade KCU10, AlTiN - Kennametal 6012687
MFR# 6012687Series Beyond Evolution
$22.48List $27.44
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6012687 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1260
Cutting width0.0790
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size2
Insert styleEG-P
Insert thickness0.1260
Manufacturer gradeKCU10
Maximum depth of cut0.0660
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.347
Overall width0.079
RakePositive
Rake angle20
