Kennametal

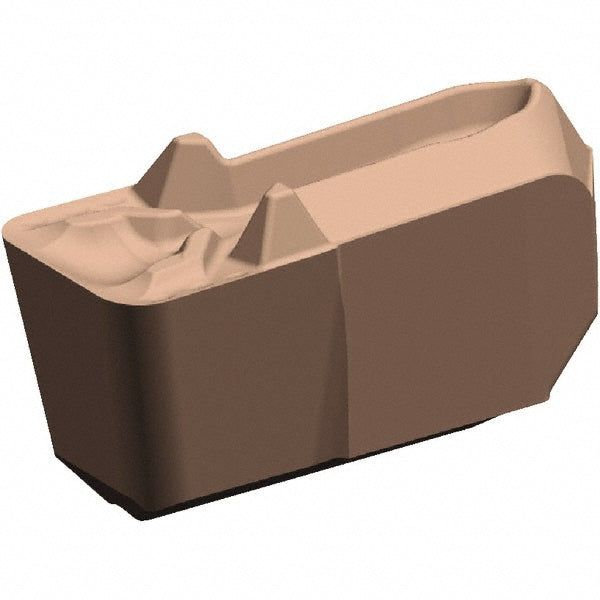

Carbide Insert, Grade KCU10, AlTiN - Kennametal 6012706
MFR# 6012706Series Beyond Evolution
$21.97List $26.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6012706 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1220
Cutting width0.0630
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size1F
Insert styleEG-P
Insert thickness0.1220
Manufacturer gradeKCU10
Maximum depth of cut0.0680
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall length0.353
Overall width0.063
RakePositive
Rake angle23
