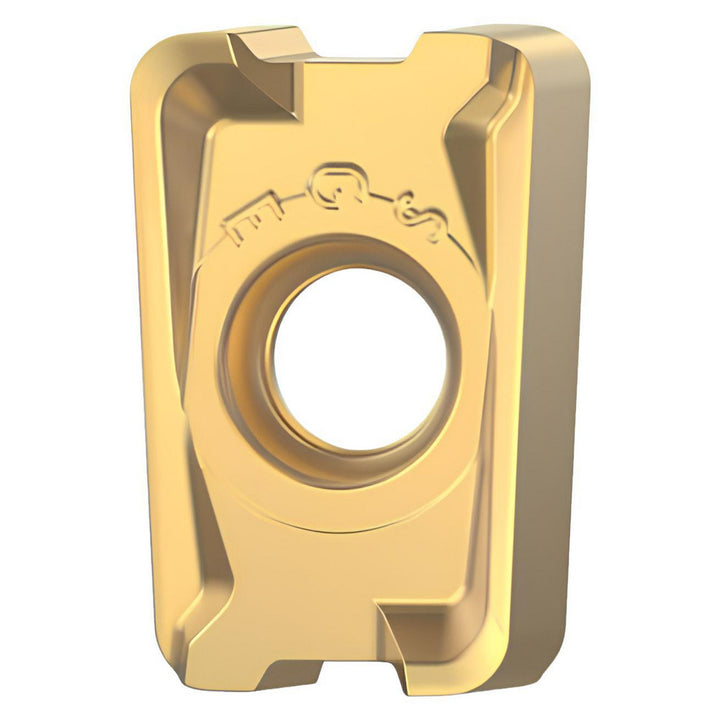

LNPU15T616SRGE Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6019506

Kennametal

LNPU15T616SRGE Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6019506

MFR# 6019506ISO/ANSI# LNPU15T616SRGECat# LNPU15T616SRGESeries LNPU

$32.82List $40.06 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 6019506 is a LNPU15T616SRGE solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNPU544SRGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code544
Insert styleLNPU
Iso codeLNPU15T616SRGE
Length0.6660
Length range0.6500 to 0.7000
Manufacturers catalog numberLNPU15T616SRGE
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2741
Thickness range0.2500 to 0.3500
Width0.3937
