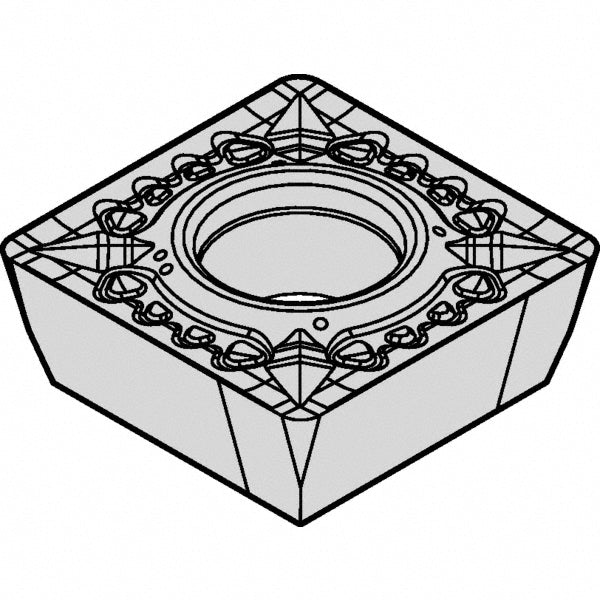

SDET1204PDSRGB Solid Carbide Insert, Grade KCSM40, AlTiN - Kennametal 6020741
MFR# 6020741ISO/ANSI# SDET1204PDSRGBCat# SDET1204PDSRGBSeries SDET
$32.71List $39.93
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6020741 is a SDET1204PDSRGB solid carbide indexable insert, grade KCSM40, AlTiN coated.
Specifications
Ansi codeSDET43PDSR8GB
Chip breakerGB
Coating finishAlTiN
Coating processPVD
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDSRGB
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDET1204PDSRGB
Manufacturer gradeKCSM40
Maximum depth of cut0.5000
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
