Kennametal

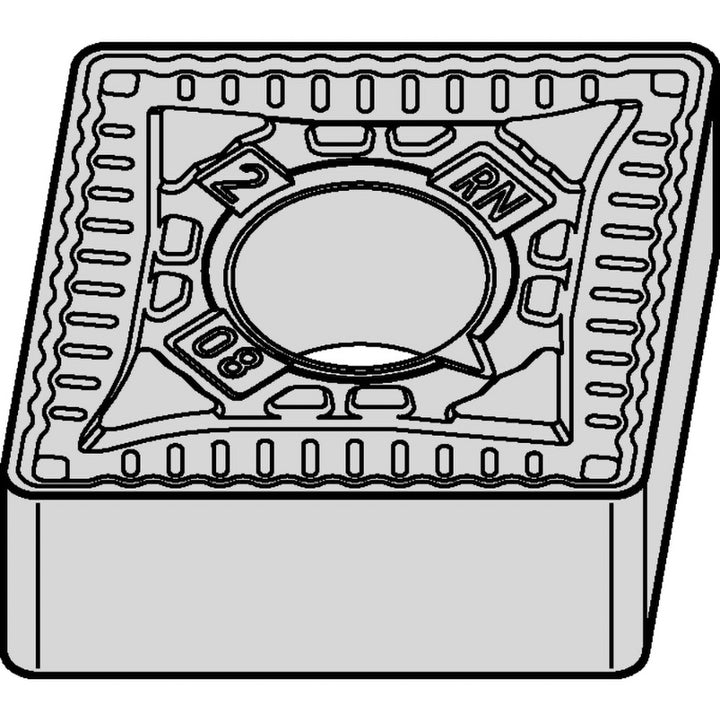

CNMG120408RN Carbide Insert, Grade KCPK05, TiCN - Kennametal 6025508
MFR# 6025508ISO/ANSI# CNMG432RNSeries KENLOC
$24.77List $30.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCPK05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 6025508 is a CNMG120408RN carbide indexable insert, grade KCPK05, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG432RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408RN
Length range0.5000 - 0.6000
Manufacturers catalog number6025508
Manufacturer gradeKCPK05
Material gradeP05; P15; K25; K35
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
