Kennametal

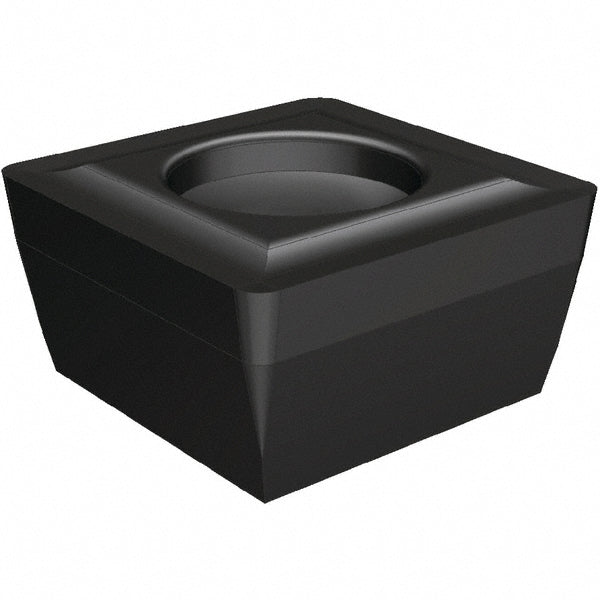

Carbide Insert, Grade KCU40, TiAlN - Kennametal 6026364
MFR# 6026364
$25.72List $31.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 6026364 is a carbide indexable insert, grade KCU40, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.40
Hole diameter0.1040in
Included angle degree90
Inscribed circle (mm)2.65
Insert handNeutral
Insert materialCarbide
Insert size060304
Insert styleSP..X..
Manufacturer gradeKCU40
ShapeSquare
Thickness in1/8
Width0.244
