Kennametal

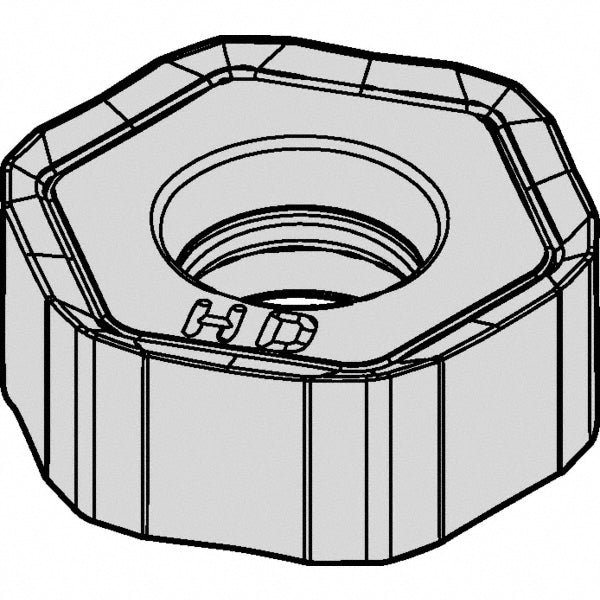

HNGJ0604ANSNHD Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 6039811
MFR# 6039811ISO/ANSI# HNGJ0604ANSNHDCat# HNGJ0604ANSNHDSeries HNGJ
$35.53List $43.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6039811 is a HNGJ0604ANSNHD solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNGJ43ANSNHD
Chip breakerHD
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNGJ
Iso codeHNGJ0604ANSNHD
Length in1/4
Length range0.4500 to 0.5000
Manufacturers catalog numberHNGJ0604ANSNHD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in11/64
Thickness range0.1500 to 0.1750
Width0.4724
