Kennametal

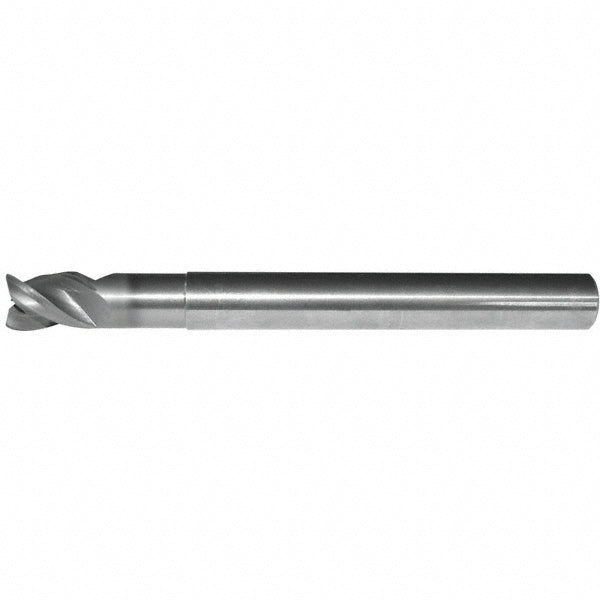

0.4724" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 6066131
MFR# 6066131Series ABDE
$227.54List $291.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Kennametal 6066131 is a 0.4724 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. Series ABDE.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius (mm)2.50
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withER Single Angle Standard Collets
Helix styleHigh
Length of cut1.0000
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter0.4724
Neck diameter (mm)11.50
Number of flutes3
Overall length (mm)100.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)36.00
Shank diameter (mm)12.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
