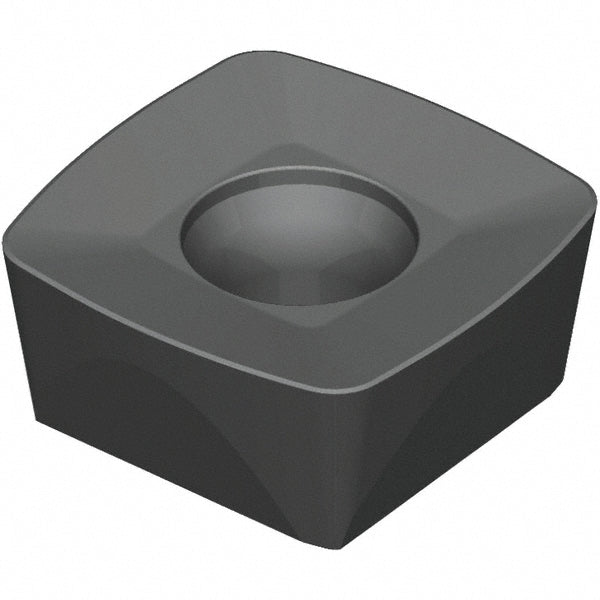

XDPT120515SRGP Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 6074030
MFR# 6074030ISO/ANSI# XDPT120515SRGPCat# XDPT120515SRGPSeries XDPT
$26.43List $32.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6074030 is a XDPT120515SRGP solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXDPT120515SRGP
Chip breakerGP
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutter series compatibility7792VXD12
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120515
Insert styleXDPT
Iso codeXDPT120515SRGP
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT120515SRGP
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle9.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
