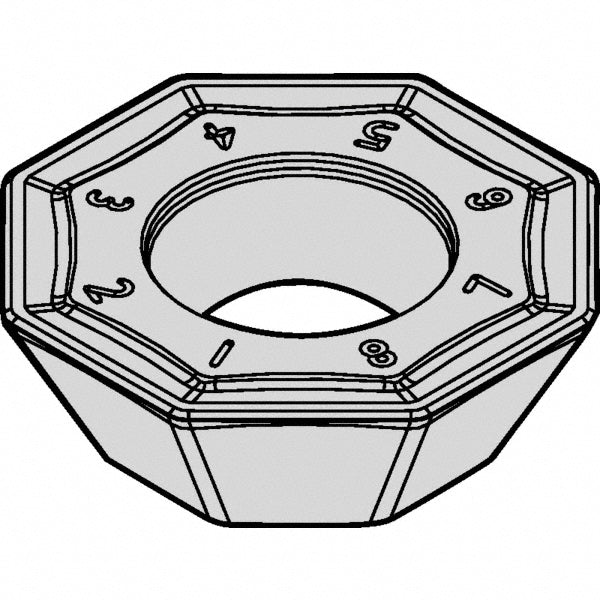

OFKT07L6AFENGB Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6111469

Kennametal

OFKT07L6AFENGB Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6111469

MFR# 6111469ISO/ANSI# OFKT07L6AFENGBCat# OFKT07L6AFENGBSeries OFKT

$36.11List $44.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC47/64
ShapeOctagon
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 6111469 is a OFKT07L6AFENGB solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOFKT64AFEN6GB
Chip breakerGB
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityKSOM
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree135
Inscribed circle in47/64
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size6
Insert size code64
Insert styleOFKT
Iso codeOFKT07L6AFENGB
Length0.7360
Length range0.7000 to 0.9000
Manufacturers catalog numberOFKT07L6AFENGB
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2362
Thickness range0.2350 to 0.2500
Width0.7360
