Kennametal

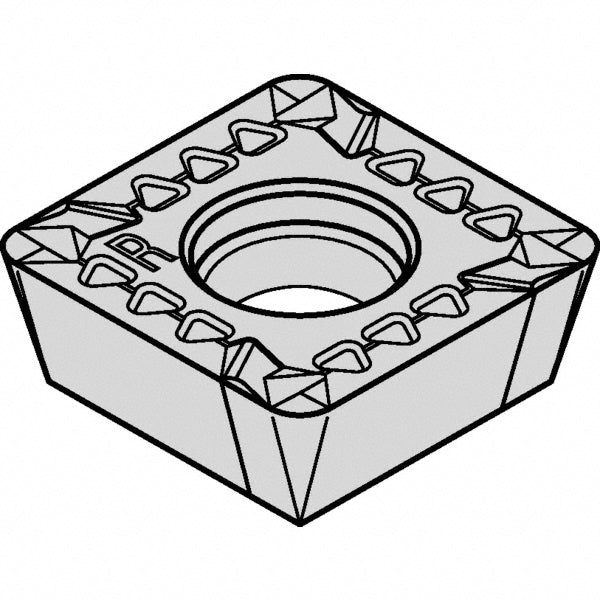

SDET1204PDSRGB2 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6111674
MFR# 6111674ISO/ANSI# SDET1204PDSRGB2Cat# SDET1204PDSRGB2Series SDET
$31.06List $37.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6111674 is a SDET1204PDSRGB2 solid carbide indexable insert, grade KCPM40, TiAlN coated.
Specifications
Ansi codeSDET43PDSR8GB2
Chip breakerGB2
Coating finishTiAlN
Coating processPVD
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDSRGB2
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDET1204PDSRGB2
Manufacturer gradeKCPM40
Rake angle5
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
