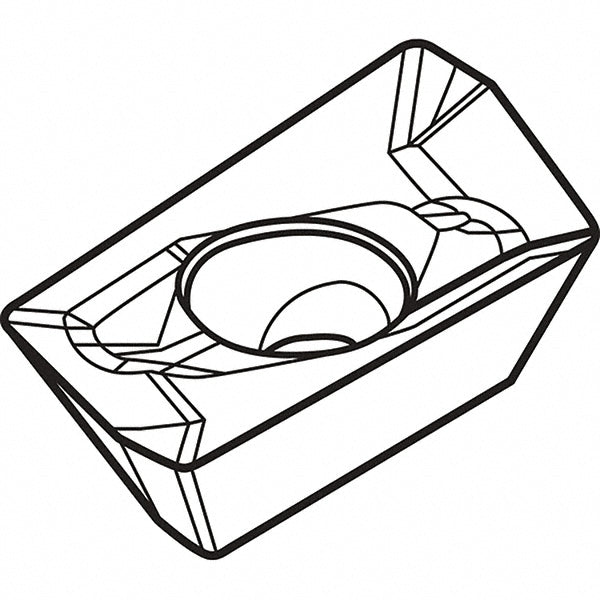

EDCT180508PDERGD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6128138
MFR# 6128138ISO/ANSI# EDCT180508PDERGDCat# EDCT180508PDERGDSeries EDCT
$33.06List $40.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6128138 is a EDCT180508PDERGD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEC1808E
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4319
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1808
Insert styleEDCT
Iso codeEDCT180508PDERGD
Length0.8567
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180508PDERGD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4319
