Kennametal

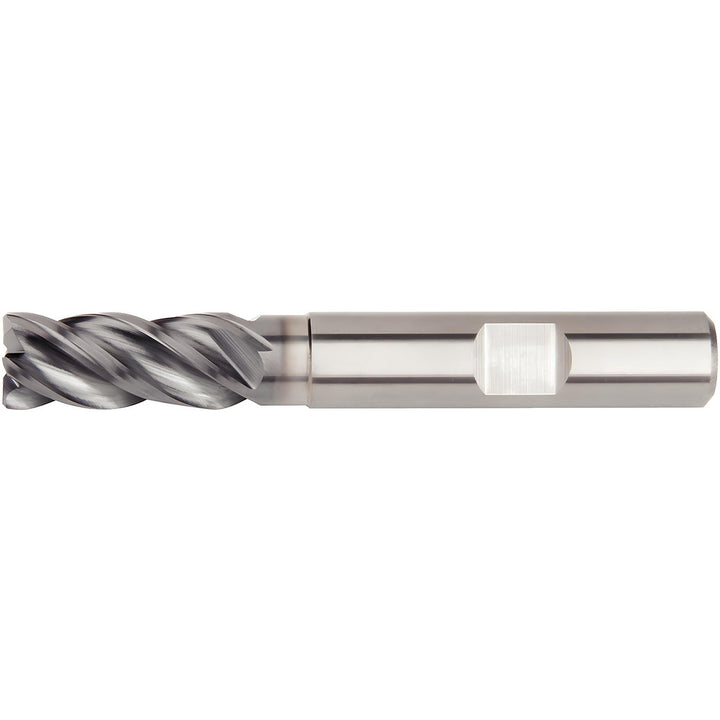

4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6130740
MFR# 6130740Cat# UADE0400A4BVSeries UADE
$82.24List $105.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6130740 is a 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series UADE.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.40
Chamfer width0.0157
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut (mm)11.00
Length typeRegular
Manufacturers catalog numberUADE0400A4BV
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter (mm)4.00
Mill diameter tolerance-0.020 to -0.038 mm
Neck diameter0.1480
Number of flutes4
Overall length (mm)57.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length0.6299
Shank diameter (mm)6.00
Shank diameter tolerance+0.000 to -0.008 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
