Kennametal

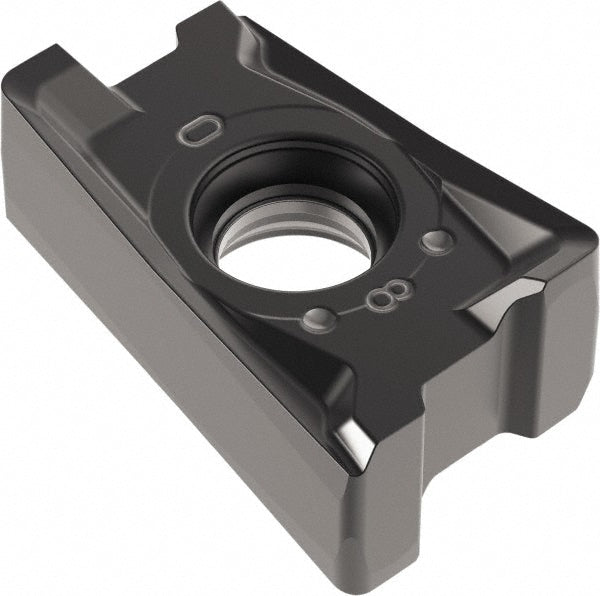

LNPU110408SRGE Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 6131505
MFR# 6131505ISO/ANSI# LNPU110408SRGECat# LNPU110408SRGESeries LNPU
$26.81List $32.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 6131505 is a LNPU110408SRGE solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNPU432SRGE
Chip breakerGE
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 4-11
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code432
Insert styleLNPU
Iso codeLNPU110408SRGE
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNPU110408SRGE
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
