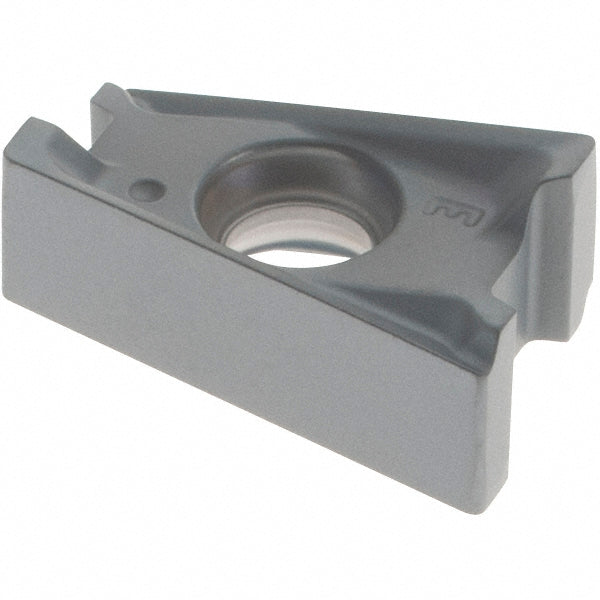

LNGU110404ERGE Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6131516
MFR# 6131516ISO/ANSI# LNGU110404ERGECat# LNGU110404ERGESeries LNGU
$28.66List $34.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6131516 is a LNGU110404ERGE solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU431ERGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 4-11
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code431
Insert styleLNGU
Iso codeLNGU110404ERGE
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNGU110404ERGE
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
