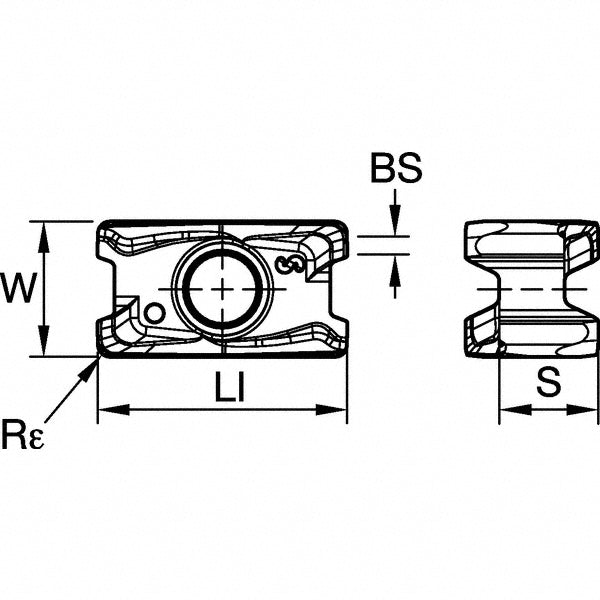

LNGU110408SRGEM Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 6131605
MFR# 6131605ISO/ANSI# LNGU110408SRGEMCat# LNGU110408SRGEMSeries LNGU
$34.31List $41.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6131605 is a LNGU110408SRGEM solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNGU432SRGEM
Chip breakerGEM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-11
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code432
Insert styleLNGU
Iso codeLNGU110408SRGEM
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNGU110408SRGEM
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
