Kennametal

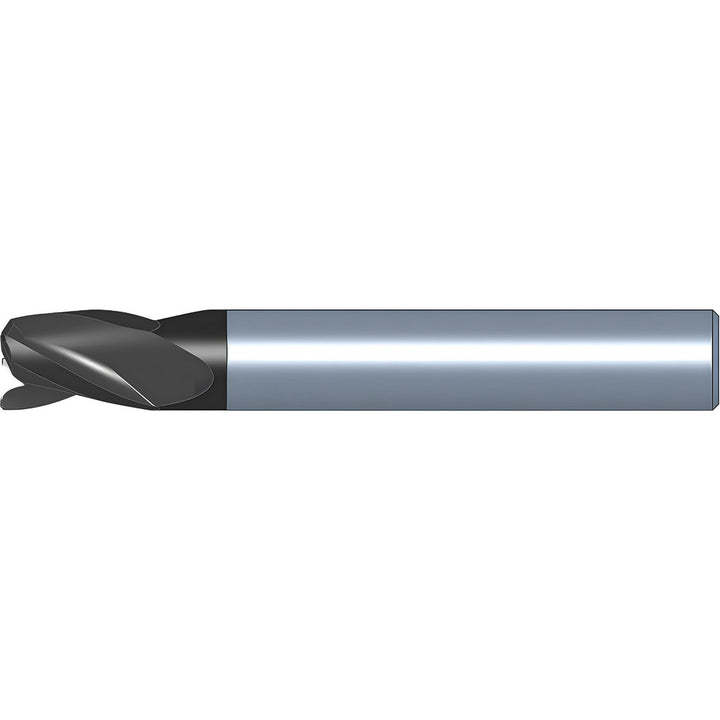

3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN - Kennametal 6146893
MFR# 6146893Cat# 3CH0400DK005BSeries 3CH
$47.92List $61.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 6146893 is a 3-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. Series 3CH.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.10
Chamfer width (mm)0.10
ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)5.00
Length typeRegular
Manufacturers catalog number3CH0400DK005B
Material gradeKC633M
Material removal typeRoughing & Finishing
Mill diameter (mm)4.00
Mill diameter tolerance-0.020 to -0.038 mm
Number of flutes3
Overall length (mm)54.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Reach length (mm)5.00
Shank diameter (mm)6.00
Shank diameter tolerance+0.000 to -0.008 mm
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
