Kennametal

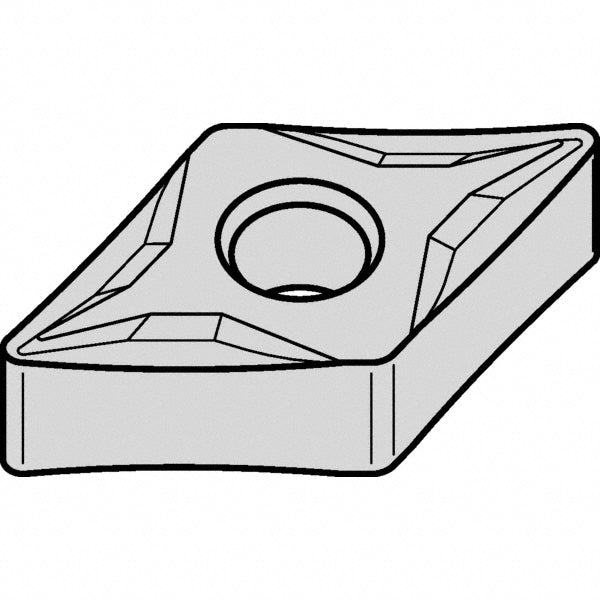

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCP25B, TiCN - Kennametal 6151562
MFR# 6151562ISO/ANSI# DNMP110408Series KENLOC
$27.70List $33.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 6151562 is a carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMP332
Ansi size code332
Chip breakerK
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMP332K
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMP
Insert thickness in3/16
Iso insert codeDNMP110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number6151562
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
