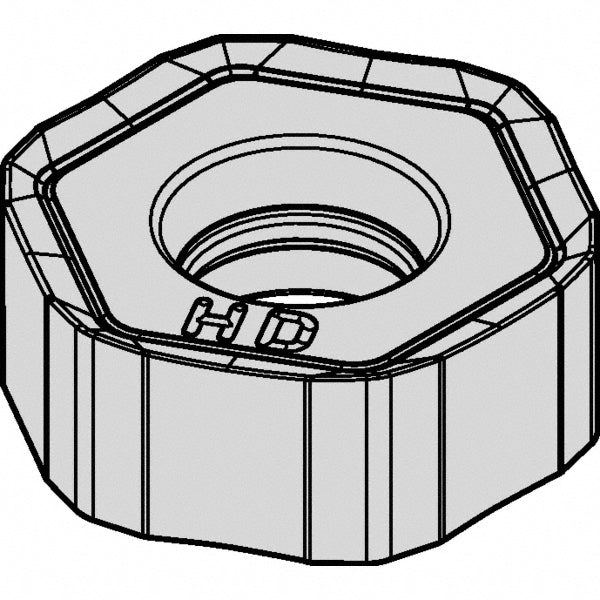

HNPJ060432ANSNHD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165861
MFR# 6165861ISO/ANSI# HNPJ060432ANSNHDCat# HNPJ060432ANSNHDSeries HNPJ
$28.91List $35.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6165861 is a HNPJ060432ANSNHD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ438ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code438
Insert styleHNPJ
Iso codeHNPJ060432ANSNHD
Length in1/4
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ060432ANSNHD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2537
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in11/64
Thickness range0.1500 to 0.1750
Width0.4724
