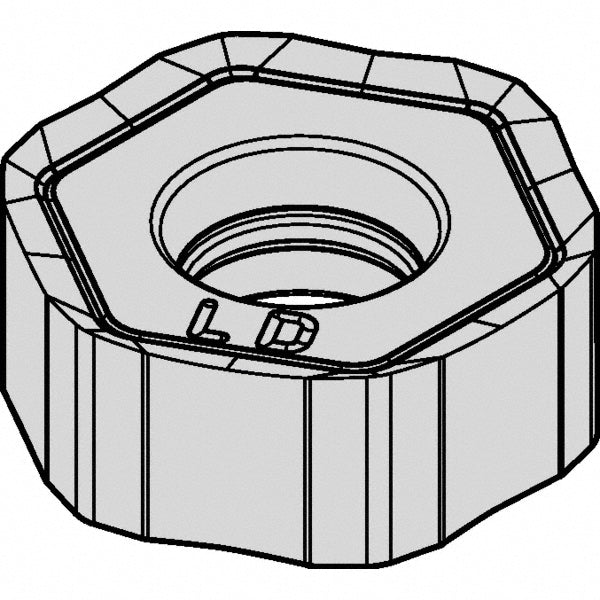

HNGJ0604ANENLD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6165862
MFR# 6165862ISO/ANSI# HNGJ0604ANENLDCat# HNGJ0604ANENLDSeries HNGJ
$38.13List $46.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6165862 is a HNGJ0604ANENLD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNGJ43ANENLD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNGJ
Iso codeHNGJ0604ANENLD
Length in1/4
Length range0.4500 to 0.5000
Manufacturers catalog numberHNGJ0604ANENLD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in11/64
Thickness range0.1750 to 0.1850
Width0.4724
