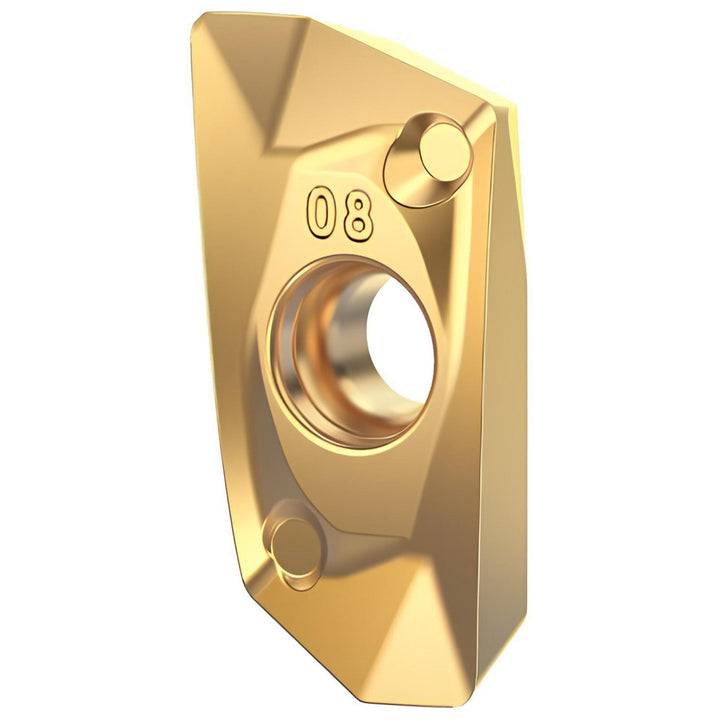

EDPT140408PDSRGD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6172129
MFR# 6172129ISO/ANSI# EDPT140408PDSRGDCat# EDPT140408PDSRGDSeries EDPT
$27.99List $34.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6172129 is a EDPT140408PDSRGD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1408SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.6295
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDSRGD
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDSRGD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.6295
