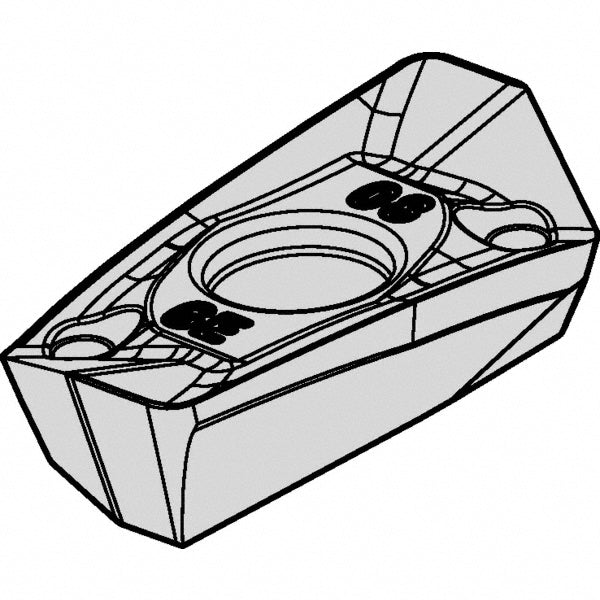

EDPT140412PDSRGD Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6172130
MFR# 6172130ISO/ANSI# EDPT140412PDSRGDCat# EDPT140412PDSRGDSeries EDPT
$27.99List $34.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6172130 is a EDPT140412PDSRGD solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1412SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3288
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1412
Insert styleEDPT
Iso codeEDPT140412PDSRGD
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140412PDSRGD
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3288
