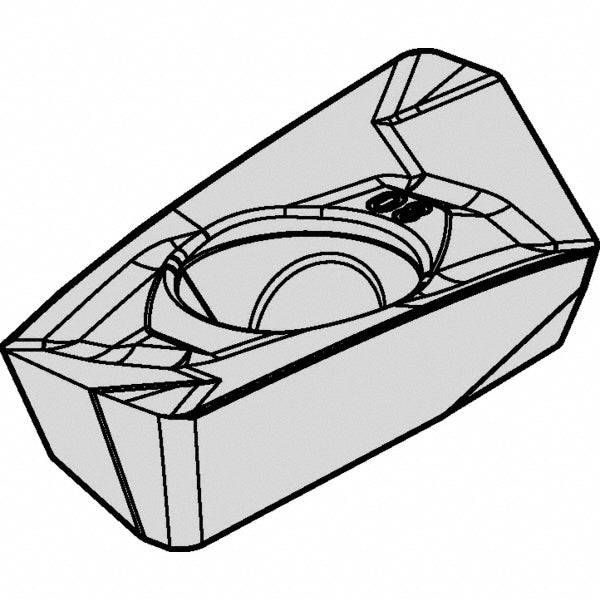

EDPT180532PDSRGE Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6172397
MFR# 6172397ISO/ANSI# EDPT180532PDSRGECat# EDPT180532PDSRGESeries EDPT
$28.35List $34.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6172397 is a EDPT180532PDSRGE solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1832SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibilityMill 1-18
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.4180
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1832
Insert styleEDPT
Iso codeEDPT180532PDSRGE
Length in55/64
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180532PDSRGE
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2144
Thickness range0.2000 to 0.2200
Width0.4180
