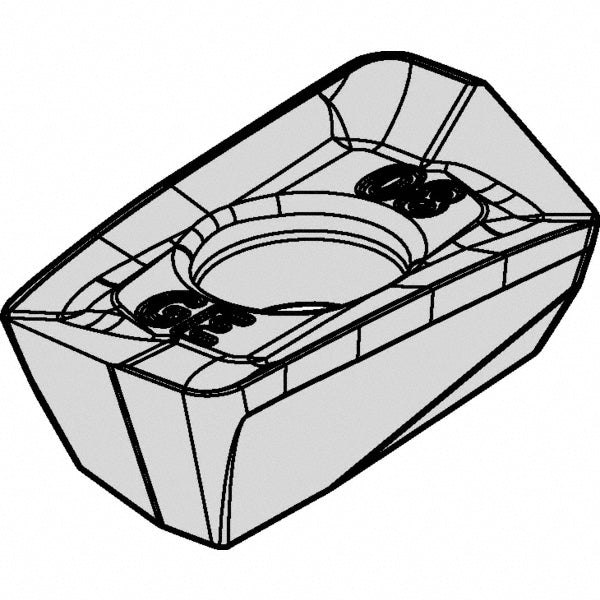

EDPT10T308PDSRGE Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6176092

Kennametal

EDPT10T308PDSRGE Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6176092

MFR# 6176092ISO/ANSI# EDPT10T308PDSRGECat# EDPT10T308PDSRGESeries EDPT

$26.19List $31.97 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 6176092 is a EDPT10T308PDSRGE solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1008SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDSRGE
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDSRGE
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in9/64
Thickness range0.1250 to 0.1500
Width in17/64
