Kennametal
Indexable Grooving - Kennametal 6180126
MFR# 6180126Series Beyond Evolution
$142.66List $174.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6180126 indexable grooving. Series Beyond Evolution.

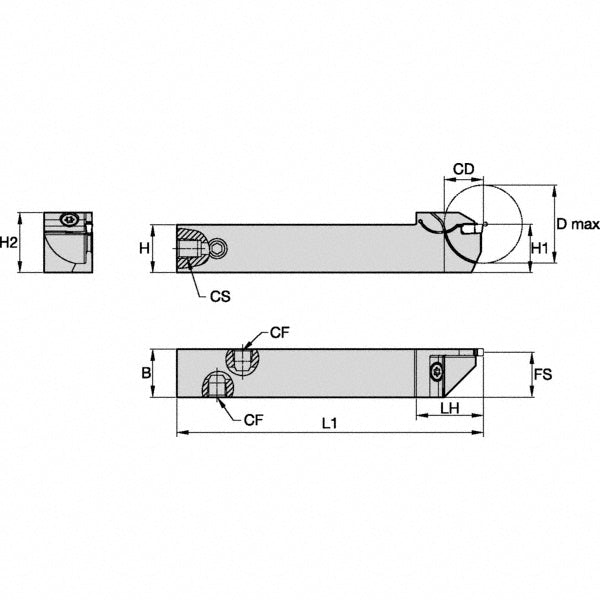

Specifications
Coolant throughYes
Hand of holderRight Hand
Head height (mm)16.70
Head length (mm)26.50
Insert compatibilityEG0200M02P02
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut (mm)16.00
Maximum groove width (mm)2.00
Minimum groove width (mm)2.00
Overall length5.0000
Shank height in1/2
Shank length (mm)87.80
Shank width diameter in1/2
Toolholder styleEVSC
