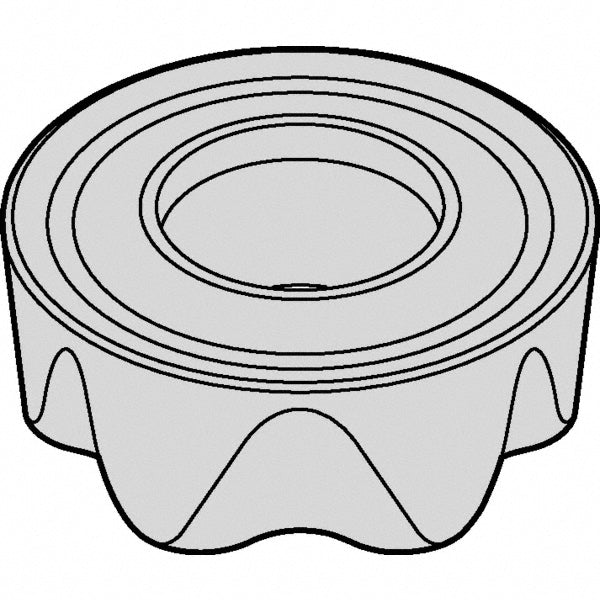

RCGT250900SHF Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6191511
MFR# 6191511ISO/ANSI# RCGT250900SHFCat# RCGT250900SHFSeries RCGT
$44.43List $54.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeRound
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6191511 is a RCGT250900SHF solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRCGT86SHF
Chip breakerHF
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleChamfered; Honed
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size8
Insert size code86
Insert styleRCGT
Iso codeRCGT250900SHF
Length in1
Length range1.0000+
Manufacturers catalog numberRCGT250900SHF
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in1
