Kennametal

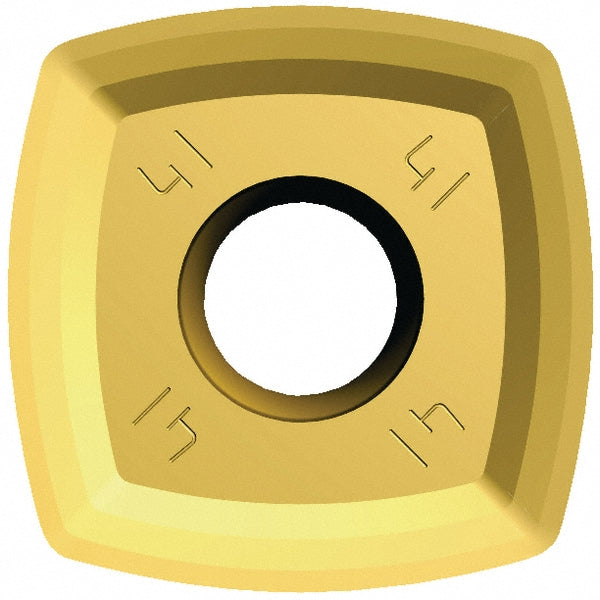

XELT160516ERD41 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6191557
MFR# 6191557ISO/ANSI# XELT160516ERD41Cat# XELT160516ERD41Series XEPT
$34.36List $41.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6191557 is a XELT160516ERD41 solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXEPT160516ERD41
Chip breakerD41
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibility7792VXE16
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.6610
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code160516
Insert styleXEPT
Iso codeXELT160516ERD41
Length in21/32
Length range0.6500 to 0.7000
Manufacturers catalog numberXELT160516ERD41
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3260
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6610
