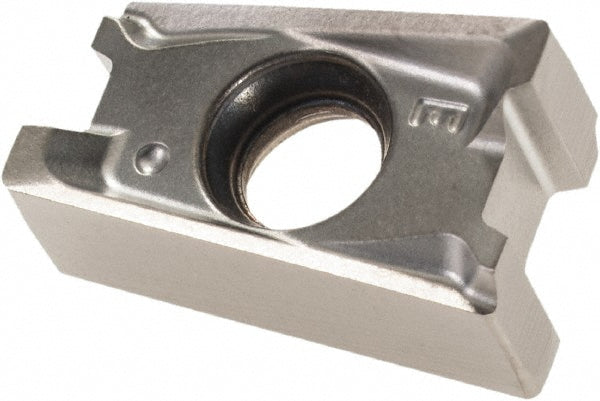

LNGU110404ERLEJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 6201292

Kennametal

LNGU110404ERLEJ Solid Carbide Insert, Grade KC422M, TiB2 - Kennametal 6201292

MFR# 6201292ISO/ANSI# LNGU110404ERLEJCat# LNGU110404ERLEJSeries LNGU

$36.04List $43.99 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKC422M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 6201292 is a LNGU110404ERLEJ solid carbide indexable insert, grade KC422M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeLNGU431ERLEJ
Chip breakerLE
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 4-11
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree90
Inscribed circle0.2598
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code431
Insert styleLNGU
Iso codeLNGU110404ERLEJ
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberLNGU110404ERLEJ
Manufacturer gradeKC422M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2598
