Kennametal

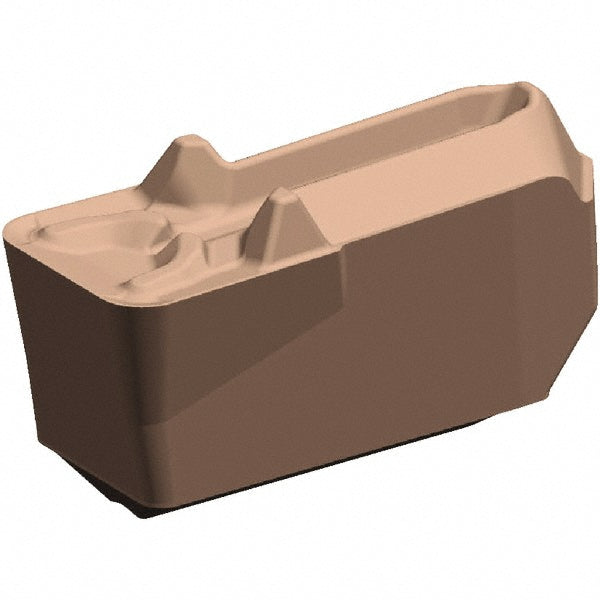

Carbide Insert, Grade KCU10, AlTiN - Kennametal 6231852
MFR# 6231852Series Beyond Evolution
$22.14List $27.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6231852 is a carbide indexable insert, grade KCU10, AlTiN coated.
Specifications
Chip breakerGUN
Coating finishAlTiN
Coating processPVD
Corner radius0.0320
Cutting height0.2010
Cutting width in1/4
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleEG
Insert thickness0.2010
Manufacturer gradeKCU10
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Measurement typeDecimal Inch
Rake angle2.25
