Kennametal

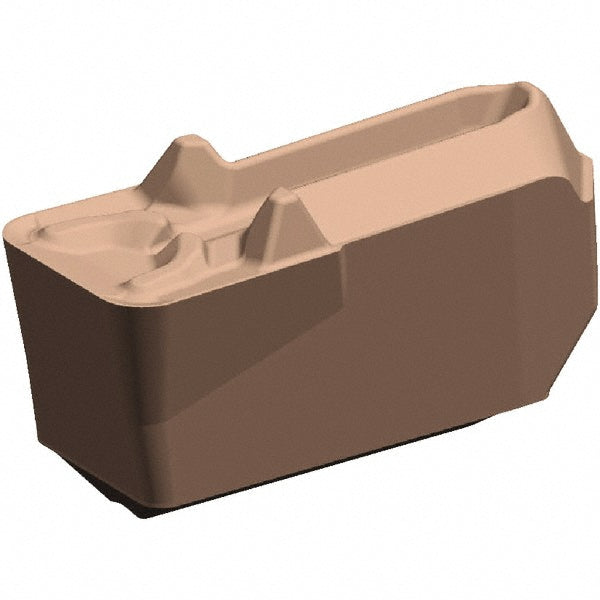

Carbide Insert, Grade KCU25, Al2O3 - Kennametal 6231860
MFR# 6231860Series Beyond Evolution
$22.14List $27.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAl2O3
Description
The Kennametal 6231860 is a carbide indexable insert, grade KCU25, Al2O3 coated.
Specifications
Chip breakerGUN
Coating finishAl2O3
Coating processPVD
Corner radius0.0160
Cutting height0.2010
Cutting width in1/4
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleEG
Insert thickness0.2010
Manufacturer gradeKCU25
Maximum depth of cut0.1550
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Rake angle2.25
