Kennametal

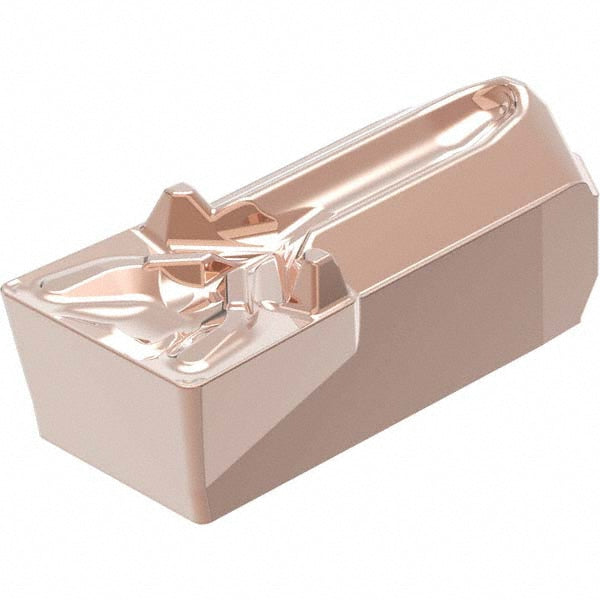

Carbide Insert, Grade KCP25B, TiOCN - Kennametal 6231888
MFR# 6231888Series Beyond Evolution
$22.14List $27.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP25B
MaterialCarbide
CoatingTiOCN
Description
The Kennametal 6231888 is a carbide indexable insert, grade KCP25B, TiOCN coated.
Specifications
Chip breakerGUN
Coating finishTiOCN
Coating processMT-CVD
Corner radius0.0160
Cutting height0.2010
Cutting width in1/4
Insert handNeutral
Insert materialCarbide
Insert size6
Insert styleEG
Insert thickness0.2010
Manufacturer gradeKCP25B
Maximum depth of cut0.1550
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Rake angle2.25
