Kennametal

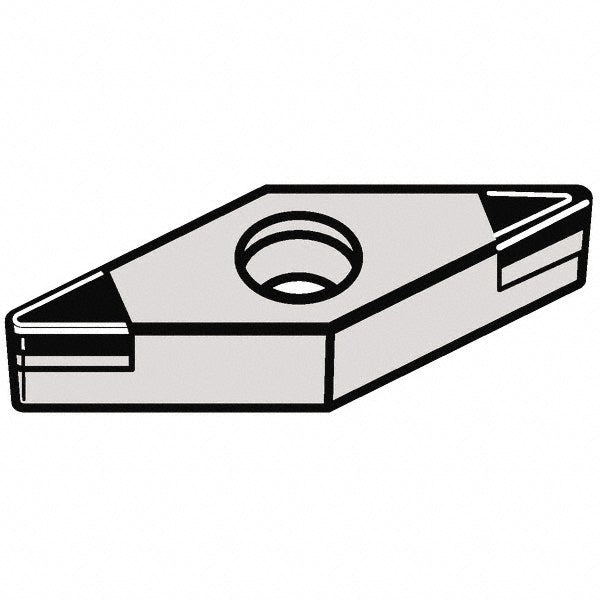

VBGW110304S01015MT PCBN Insert, Grade KBH10 - Kennametal 6296037
MFR# 6296037ISO/ANSI# VBGW110304Series Screw-On
$148.93List $178.59
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKBH10
MaterialPCBN
Description
The Kennametal 6296037 is a VBGW110304S01015MT pcbn indexable insert, grade KBH10. Suited for hard material.
Specifications
Ansi insert codeVBGW221
Ansi size code221
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeB
Coating processUncoated
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1102
Included angle35
Industry standard numberVBGW221S0415MT
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialPCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBGW
Insert thickness in1/8
Iso codeVBGW110304S01015MT
Iso insert codeVBGW110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number6296037
Manufacturer gradeKBH10
Material gradeH05; H15
Maximum depth of cut0.2904
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle5
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
