Kennametal

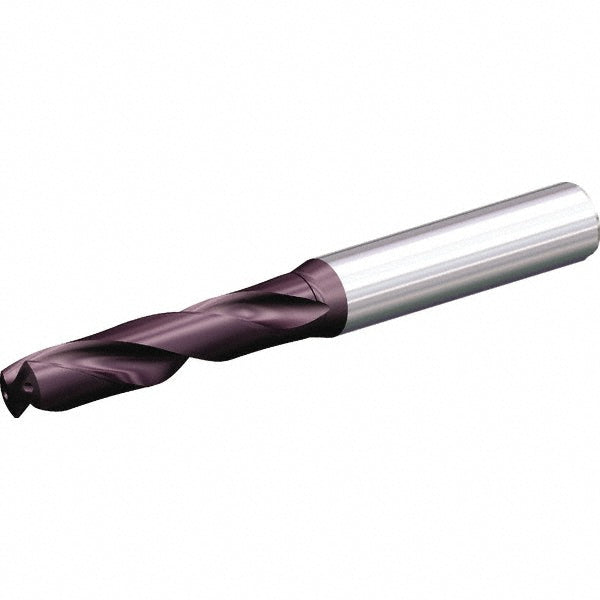

0.1614" Solid Carbide Drill Bit, 140° point - Kennametal 6350561
MFR# 6350561Series B212SGL
$307.57List $394.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6350561 is a 0.1614" Solid Carbide drill bit, 140° point. Series B212SGL.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1614
Drill point angle degrees140
Drill point length (mm)0.61
Flute length (mm)49.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeKCMS15
Maximum drilling depth (mm)41.00
Overall length (mm)87
Point typeSGL
Shank diameter0.2362
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
