Kennametal

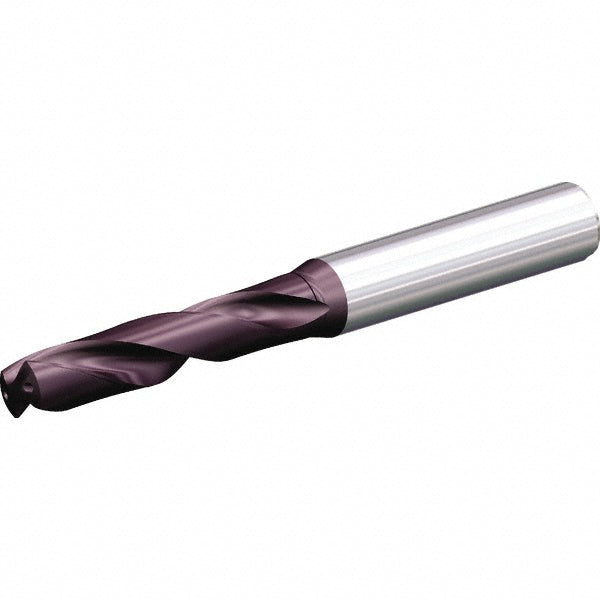

1/8" Solid Carbide Screw Machine Drill Bit, AlTiN, 140° point - Kennametal 6358124
MFR# 6358124Series B210
$156.26List $200.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingAlTiN
Description
The Kennametal 6358124 is a 1/8" Solid Carbide Screw Machine drill bit with a AlTiN finish, 140° point. Suited for steel, stainless steel, high-temp alloy. Series B210.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0185
Flute by diameter ratio3xD
Flute length0.7874
Flute typeRegular Spiral
Material gradeKCMS15
Maximum drilling depth0.5512
Number of flutes2
Overall length2.4409
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Spiral typeRegular
StandardsDIN 6535; DIN 6537
Tool materialSolid Carbide
