Kennametal

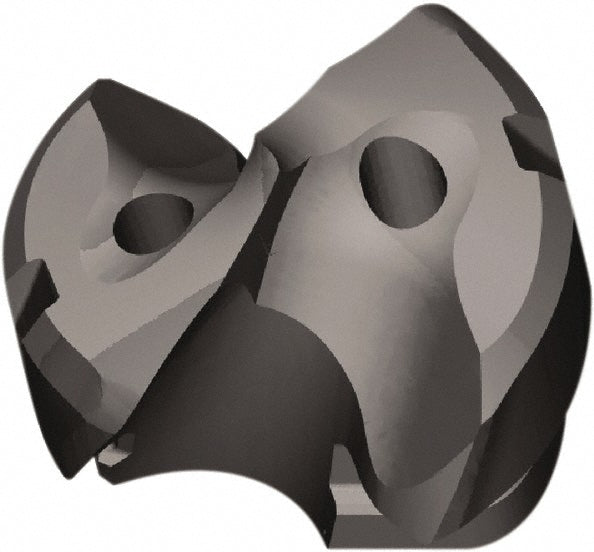

Carbide Insert, Grade KC7410, AlCr - Kennametal 6370419
MFR# 6370419Series KTFST
$225.79List $258.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7410
CoatingAlCr
Description
The Kennametal 6370419 is a carbide indexable insert, grade KC7410, AlCr coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishAlCr
Coating processPVD
Coolant throughYes
Cutting diameter in63/64
DrillingStackedPlates; 100160773
Drill point angle140
Flute length (mm)12.00
Flute typeHelical
Functional length0.4922
Height (mm)18.00
Included angle degree140
Insert geometryHPC
Insert holding methodClamp
Insert seat sizeZD
Iso numberKTFST25000HPCM
Manufacturer gradeKC7410
Material gradeK15
Number of flutes2
Overall length projection0.7233
Point typeStandard
Primary workpiece materialCast Iron
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/4margin/coolant
