Kennametal

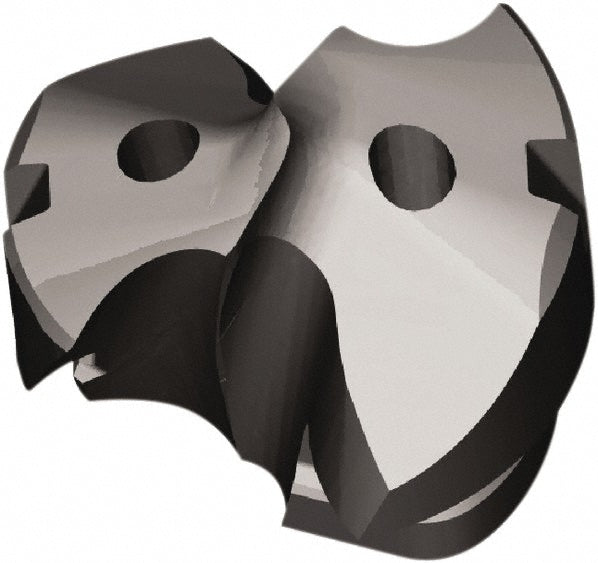

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 6371080
MFR# 6371080Series KTFST
$143.16List $163.68
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN
Description
The Kennametal 6371080 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for stainless steel.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughYes
Cutting diameter0.5512
DrillingStackedPlates
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2756
Height (mm)10.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat sizeR
Iso numberKTFST14000HPLM
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.3917
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
