Kennametal
Carbide Insert, Grade KCP15A, AlTiN - Kennametal 6388701
MFR# 6388701Series KTFSS
$191.37List $218.80
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCP15A
CoatingAlTiN
Description

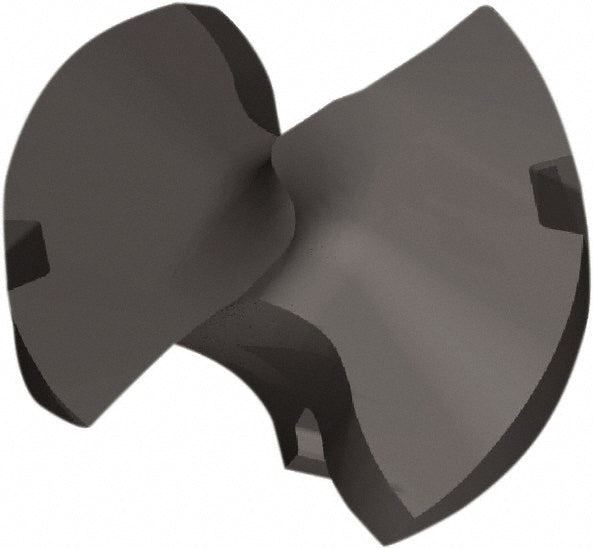

The Kennametal 6388701 is a carbide indexable insert, grade KCP15A, AlTiN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter in7/8
DrillingStackedPlates
Drill point angle180
Flute length (mm)11.00
Flute typeHelical
Functional length0.4375
Height (mm)16.00
Included angle degree180
Insert geometryHPG
Insert holding methodClamp
Insert seat sizeZA
Iso numberKTFSS08750HPG
Manufacturer gradeKCP15A
Material gradeFine Grain
Number of flutes2
Overall length projection0.6245
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKTFSS
Tip materialSolid Carbide
Tooldimensions2flute/2margin/nocool; 100160772
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
