Kennametal

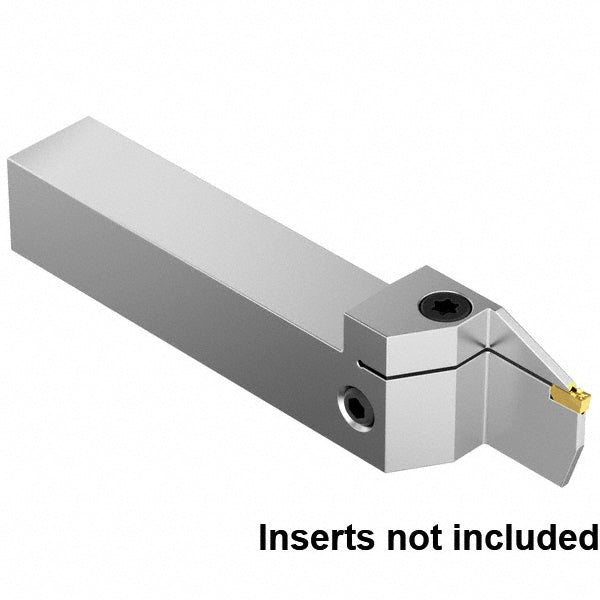

Indexable Grooving - Kennametal 6401860
MFR# 6401860Cat# EVSMR120222CSeries EVSM
$238.19List $290.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6401860 indexable grooving. Series EVSM.
Specifications
Back of bar to cutting edge0.7120
Complete insert compatibilityEG0200M02P02
Coolant throughYes
Hand of holderRight Hand
Head height (mm)27.80
Head length (mm)41.30
Insert compatibilityEG0200M02P02
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberEVSMR120222C
Maximum depth of cut (mm)22.00
Maximum groove width (mm)2.00
Minimum groove width (mm)2.00
Overall length5.0000
Shank height in3/4
Shank length (mm)73.00
Shank width diameter in3/4
Toolholder styleEVSM
