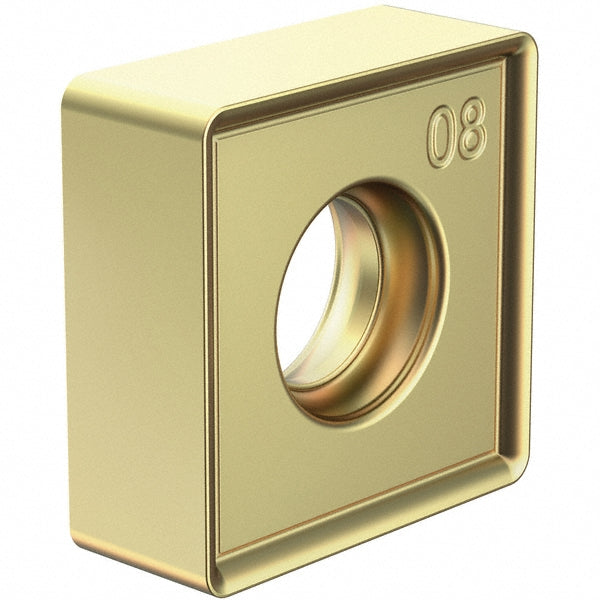

SNHJ100408SNGDH Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 6412504
MFR# 6412504ISO/ANSI# SNHJ100408SNGDHCat# SNHJ100408SNGDHSeries SNHJ
$33.38List $40.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6412504 is a SNHJ100408SNGDH solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSNHJ332SNGDH
Chip breakerGDH
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHARVI-8
Cutting edge styleChamfered; Honed
Hole diameter0.1850
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size3
Insert size code332
Insert styleSNHJ
Iso codeSNHJ100408SNGDH
Length0.3940
Length range0.3200 to 0.4000
Manufacturers catalog numberSNHJ100408SNGDH
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1780
Thickness range0.1750 to 0.1850
Width0.3940
