Kennametal

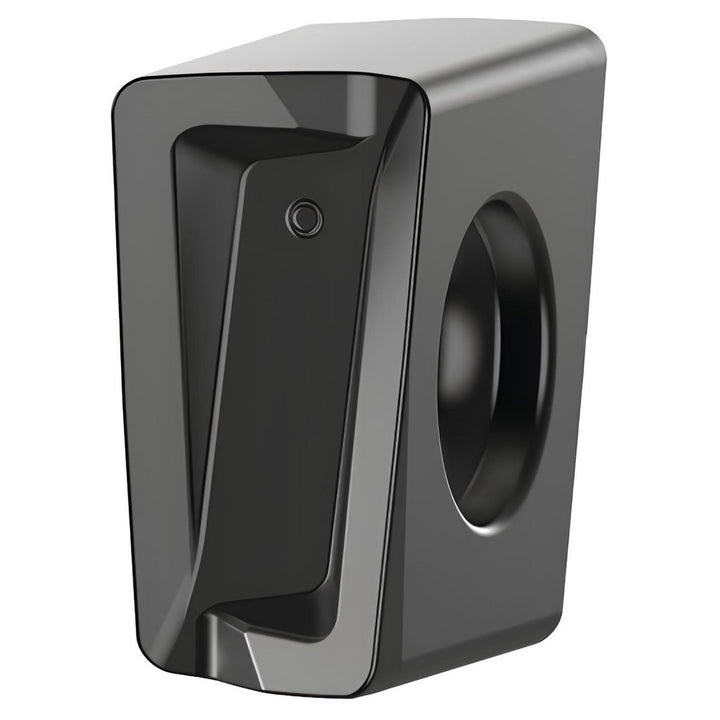

LNGQ120604ERGEKT4 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6525691
MFR# 6525691ISO/ANSI# LNGQ120604ERGEKT4Cat# LNGQ120604ERGEKT4Series LNGQ
$42.05List $51.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/32
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6525691 is a LNGQ120604ERGEKT4 solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGQ120604ERGEKT4
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 4-12
Cutting edge styleHoned
Hole diameter0.1929
Included angle degree90
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code120604
Insert styleLNGQ
Iso codeLNGQ120604ERGEKT4
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGQ120604ERGEKT4
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in17/32
