Kennametal

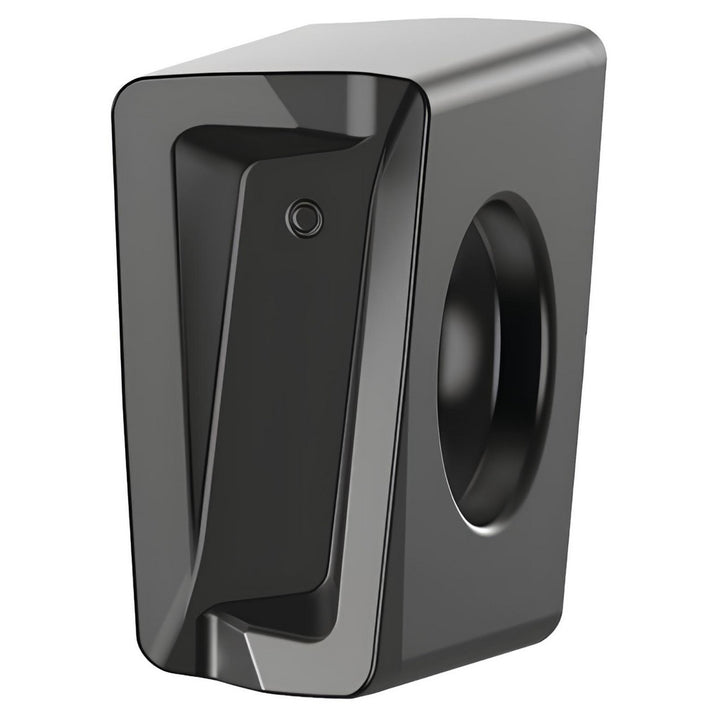

LNGQ120624ERGEKT4 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 6525696
MFR# 6525696ISO/ANSI# LNGQ120624ERGEKT4Cat# LNGQ120624ERGEKT4Series LNGQ
$34.65List $42.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6525696 is a LNGQ120624ERGEKT4 solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGQ120624ERGEKT4
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in3/32
Cutter series compatibilityMill 4-12
Cutting edge styleHoned
Hole diameter0.1929
Included angle degree90
Inscribed circle0.5074
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code120624
Insert styleLNGQ
Iso codeLNGQ120624ERGEKT4
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGQ120624ERGEKT4
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.5074
