Kennametal

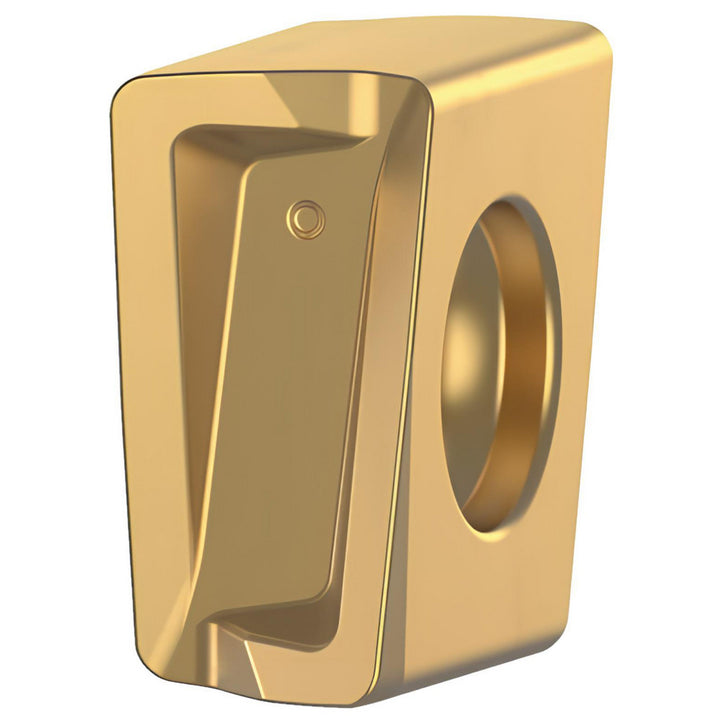

LNGQ120608ERGEKT4 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 6525756
MFR# 6525756ISO/ANSI# LNGQ120608ERGEKT4Cat# LNGQ120608ERGEKT4Series LNGQ
$42.05List $51.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 6525756 is a LNGQ120608ERGEKT4 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGQ120608ERGEKT4
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-12
Cutting edge styleHoned
Hole diameter0.1929
Included angle degree90
Inscribed circle0.5270
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code120608
Insert styleLNGQ
Iso codeLNGQ120608ERGEKT4
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGQ120608ERGEKT4
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.5270
