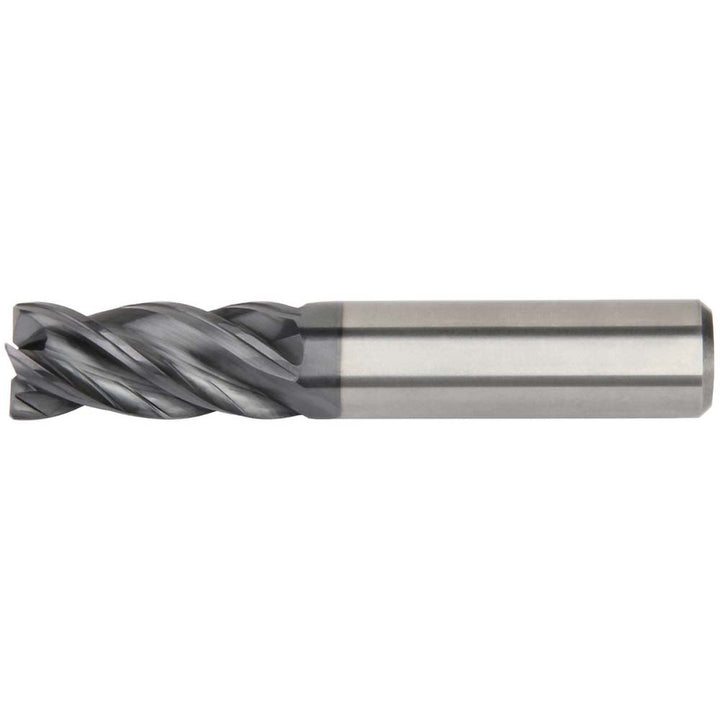

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676929

Kennametal

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676929

MFR# 6676929Series H1TE

$155.07List $198.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6676929 is a 1/2 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1 length of cut, 3 overall length. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36-39
Length of cut in1
Length typeRegular
Material gradeKCPM15
Mill diameter in1/2
Neck length1.4000
Number of flutes4
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Widia1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879527 $73.16 Iscar1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401163 $90.57 SGS1/2" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36858 $101.89 Seco1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03083833 $117.99
