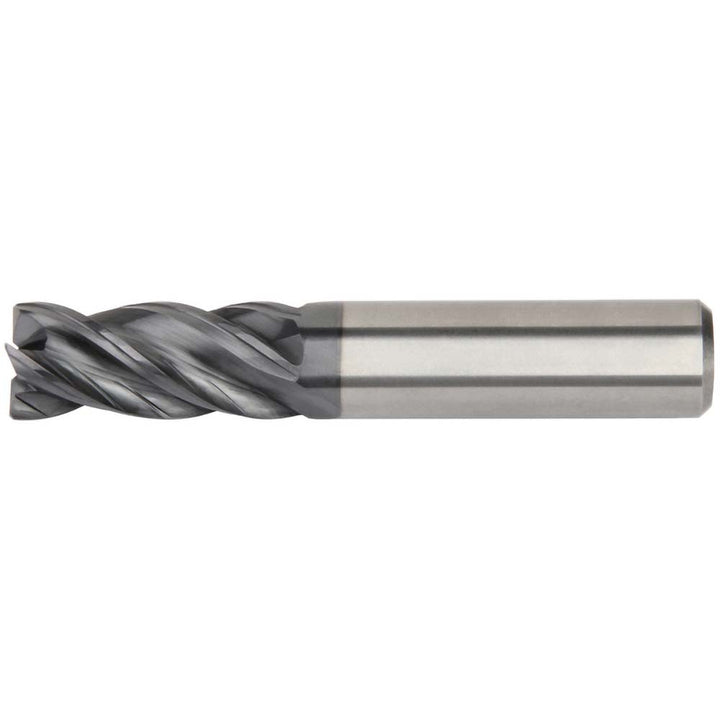

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676930

Kennametal

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676930

MFR# 6676930Series H1TE

$154.95List $198.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6676930 is a 1/2 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1-1/4 length of cut, 3-1/4 overall length. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36-39
Length of cut in1-1/4
Length typeRegular
Material gradeKCPM15
Mill diameter in1/2
Neck length1.6500
Number of flutes4
Overall length in3-1/4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexYes
