Kennametal

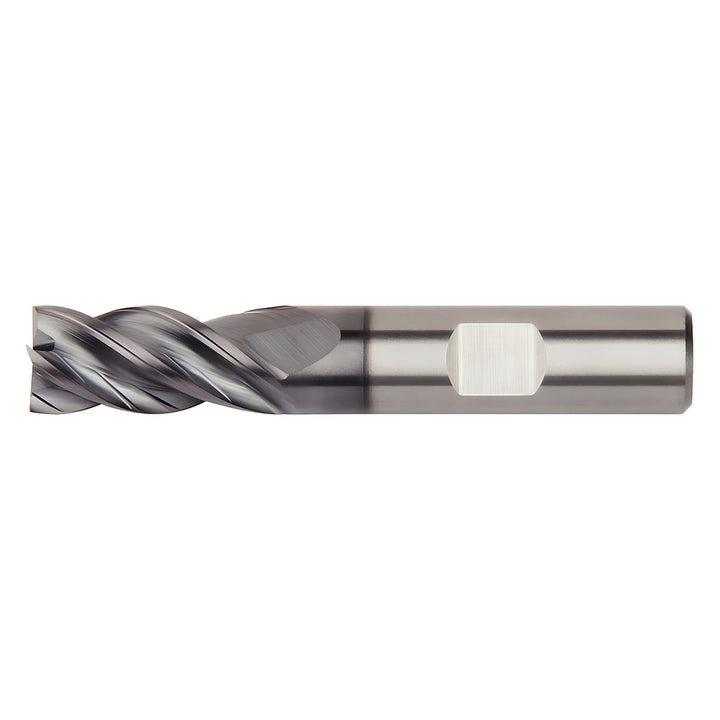

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6677057

MFR# 6677057Cat# H1TE4CH0750S088HBSeries H1TE

$412.94List $529.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6677057 is a 3/4 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 7/8 length of cut, 3-1/2 overall length. Series H1TE.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleVariable

Length of cut in7/8

Length typeRegular

Manufacturers catalog numberH1TE4CH0750S088HB

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in7/8

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
