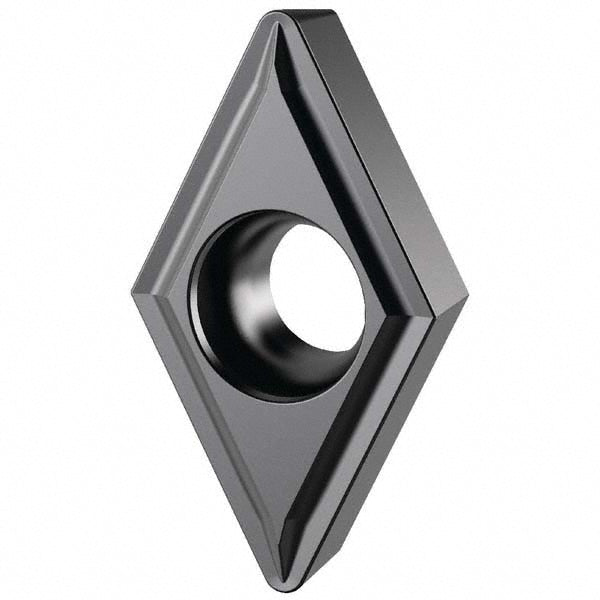

DCGT11T302LF Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6686928

Kennametal

DCGT11T302LF Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6686928

MFR# 6686928ISO/ANSI# DCGT11T302Series Screw-On

$30.05List $36.68 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 6686928 is a DCGT11T302LF carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCGT32505
Ansi size code32505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle55
Industry standard numberDCGT32505LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32505
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302LF
Iso insert codeDCGT11T302
Iso size code11T302
Length range0.7000 - 10.0000
Manufacturers catalog number6686928
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
