Kennametal

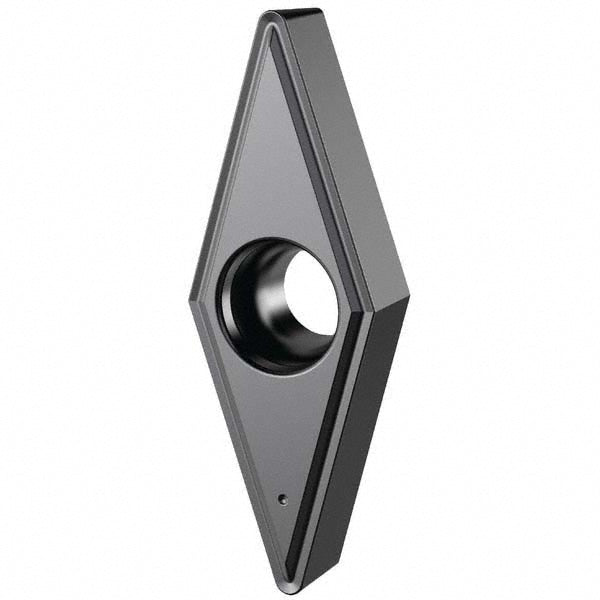

VBGT160404LF Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6687070
MFR# 6687070ISO/ANSI# VBGT160404Series Screw-On
$40.51List $49.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6687070 is a VBGT160404LF carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVBGT331
Ansi size code331
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle35
Industry standard numberVBGT331LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBGT
Insert thickness in3/16
Iso codeVBGT160404LF
Iso insert codeVBGT160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number6687070
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
