Kennametal

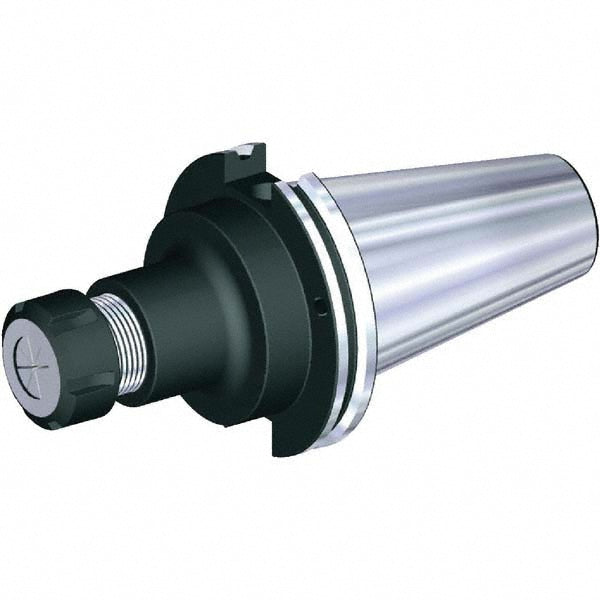

CV40 Collet Chuck - Kennametal 6693878
MFR# 6693878
$210.81List $264.62
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 6693878 is a CV40 Collet Chuck.
Specifications
Collet seriesER32
Collet systemER
Maximum collet capacity (mm)20.00
Maximum rpm20000
Minimum collet capacity (mm)2.00
Overall length (mm)169.85
Projection in4
Shank diameter in1-3/4
Shank length (mm)38.25
Shank typeTaper
Taper sizeCV40
Through coolantYes
