Kennametal

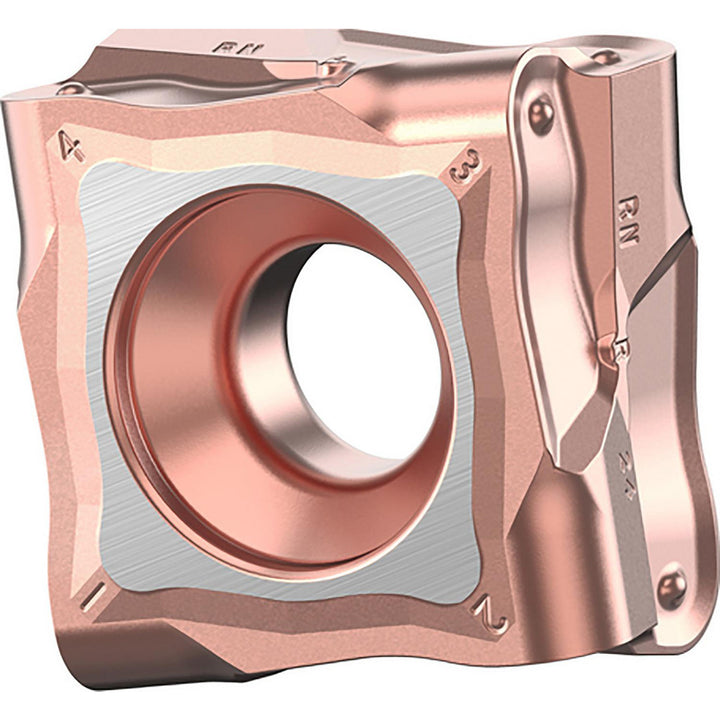

CNUX191016RRN Carbide Insert, Grade KCP25B, TiCN - Kennametal 6710685
MFR# 6710685ISO/ANSI# CNUX6674RRNSeries FIX8
$61.45List $75.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 6710685 is a CNUX191016RRN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2839
Included angle80degree
Industry standard numberCNUX6674RRN
Inscribed circle in3/4
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeDiamond 80
Insert size code6674
Insert styleCNUX
Insert thickness0.4165
Iso codeCNUX191016RRN
Length range0.7000 - 10.0000
Manufacturers catalog number6710685
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2498
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeU
Width0.7461in
Wiper edgeNo
