Kennametal

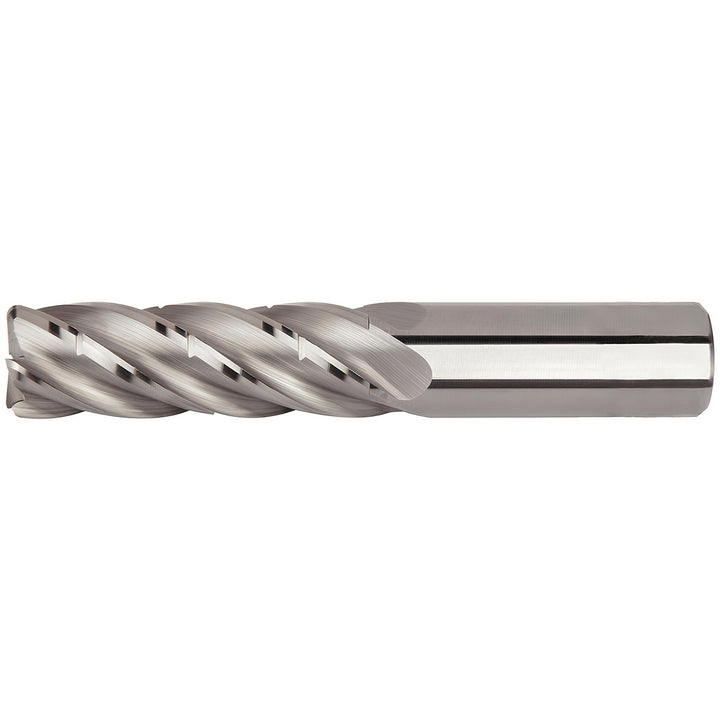

3/8" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754952

MFR# 6754952Series KOR5

$113.33List $145.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 6754952 is a 3/8 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/8 length of cut, 3 overall length. Series KOR5.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughYes

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores

Helix styleMedium

Length of cut in1-1/8

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/8

Number of flutes5

Overall length in3

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
